12 Channel bluetooth Live Studio Audio Mixer Mixing Console USB XLR 48V Phantom EU Power Plug
$287.02
In stock
SKU
ESSEAR-1607226
Amazon shop
Buy your favourite fashion, electronics, beauty, home & baby products online.punjab, Pakistan
8 Sales Joined since Aug 26, 2018
Technical Parameter:
Input Sensitivity: -60dBm ~ -40dBm
Nominal Input Level:
Mic-60dBm
Line-20dBm
Eff Ret-20dBm
Aux In-20dBm
Tape In-10dBm
Nominal Output Level:
Eff Ret-10dBm
Aux Send-0dBm
Common Mode Rejection: -70dB
Output Voltage(Mixer part): 4V Max
S/N Ratio: -70dB
THD(1KHz Full Power): Less than 0.03%(At 1KHZ)
Frequency Response: 20Hz-20KHz±3dB
Headphone: 7V/220Ω
Parametric CQ:
Hi±15dB/12KHz
Mid±15dB/2.5KHz
Low±15dB/80Hz
Power Conaumption: 30W
Power Supply: AC 220V-240V/ 50-60Hz
Features:
- USB function.
- 12 channel mixer.
- Insert option for external effects devices.
- AUX and effects paths ad well as separate gain controls on all channels.
- High-grade-sealed faders and potentionmerters.
- Low-noise, discrete mic preamplifiers on all microphone inputs.
- Headphones output with dedicated voilme control.
- Built-in +48V phantom power for condenser mics.
- Separate input JACK controls for mic and line inputs on all mono channels.
- AUX Send and EFF Senc controls in the main section for optional level adjustment.
- Extremely rugged constuction ensures long life even under the most demanding conditions.

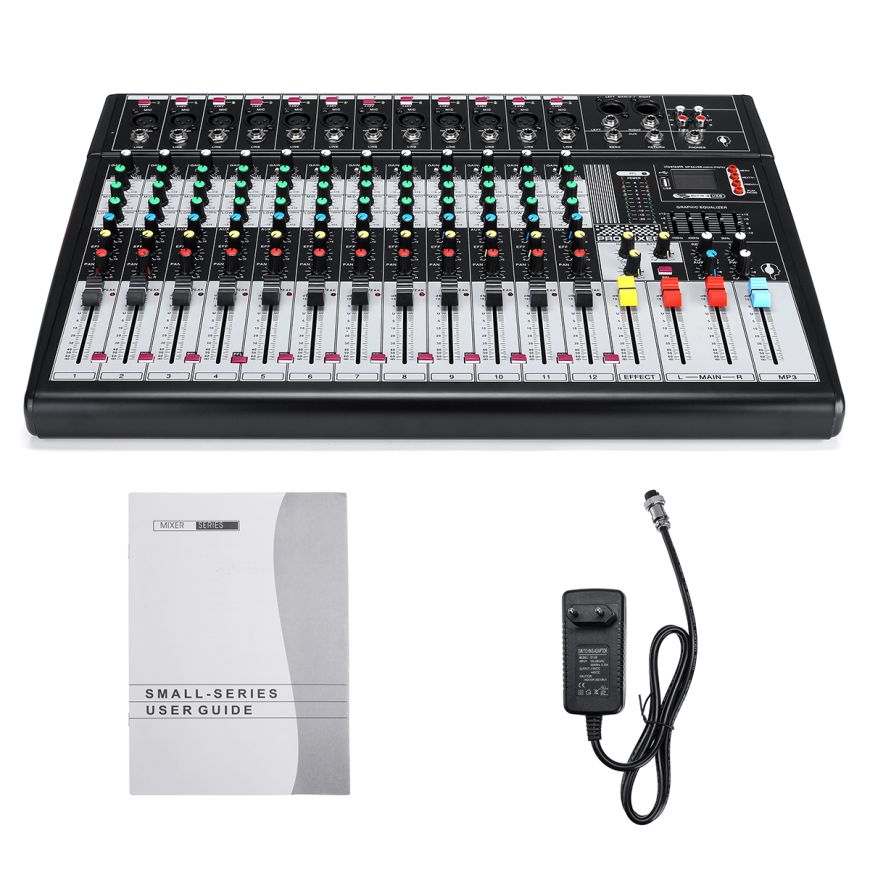

Package Included:
1 x Mixing Console
1 x Power Adapter(EU Plug)
1 x User Manual
