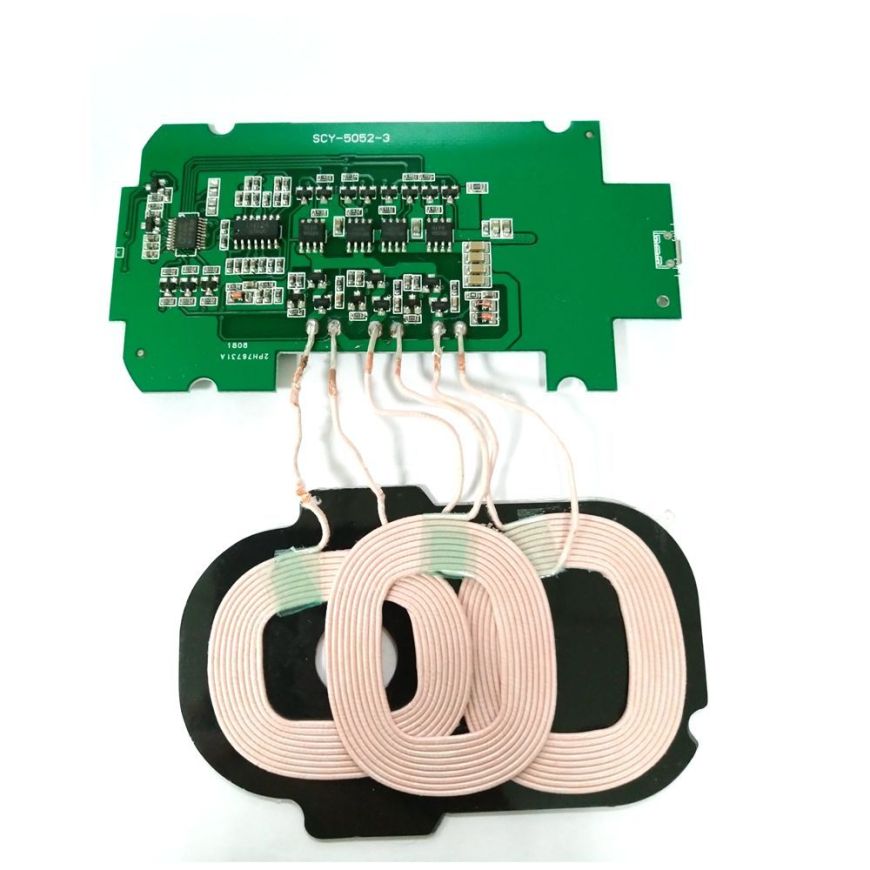

Bakeey 3 Coils DIY Material Qi Wireless Charger PCBA Launch Board 5V 2A for Smartphones

Input voltage: DC5V, (beyond this range voltage will stop charging)

Input current: DC1.5-2A

Output voltage: DC5V,

Wireless current: 0.5-1A

Charging power: up to 5W

Conversion efficiency: greater than 73%

Transmission distance: maximum 7mm, recommended 2mm~4mm

Standby power consumption: the average power consumption is less than 50mW

Over temperature protection: it will  automatically stop charging for 1 minute when charging temperature is higher than 60 °, wait for the temperature down and then recharge

Over-current protection: Output current is greater than 1.8A when charging is automatically stop charging to prevent damage to the charger

Standards: Qi wireless charging standard WPC1.1

Working frequency: 100~205KHZ

Coil type: QI A6 3 coils

Package contents:
1* Bakeey 3 Coils DIY Material Qi Wireless Charger
